Products

C&B Piping DI Wall Penetration Pipe

For DI piping passing through walls, DI Wall Pipe may be used.   All DI Wall Pipe manufactured by C&B Piping are furnished with a wall collar welded continuously on both sides of the collar. This wall collar serves both as a waterstop and a thrust collar.

C&B Piping DI Fabricated Restrained Joint Closure Spools

C&B Piping utilizes automated welding machines which use the submerged-arc welding process to apply OEM designed factory restrained joint weld beads onto ductile iron pipe.

C&B Piping Fabricated Victaulic Bolted Sleeve Coupling Closures

C&B Piping provides closure spool pipe connections to be used with restrained bolted sleeve couplings (Depend-O-Lok) manufactured by Victaulic.

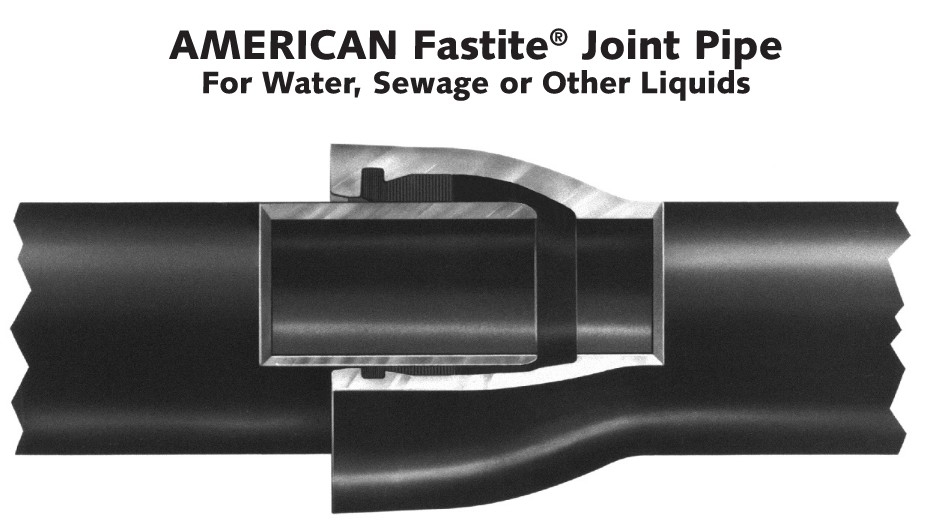

Fastite® Ductile Iron Pipe

C&B provides Fastite® ductile iron pipe for buried non restrained piping applications.   We also apply various linings for water & wastewater which fit the application intended.

For more information, please contact C&B Piping, LLC

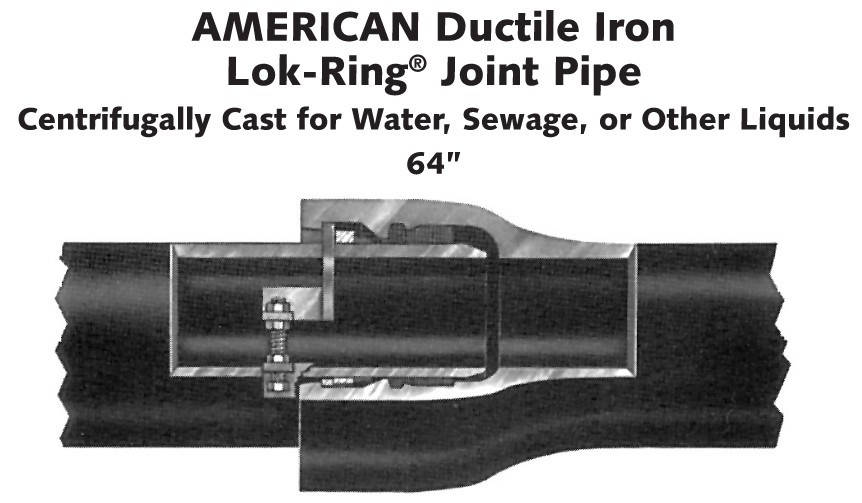

Lok-Ring® Joint Ductile Iron Pipe

C&B can provide Lok-Ring® Joint Ductile Iron Pipe for buried restrained piping applications. Lok-Ring® Joint Ductile Iron Pipe is available in 64" size.  We also apply various linings for water & wastewater which fit the application intended.

For more information, please contact C&B Piping, LLC

C&B Piping Threaded Welded Outlets for Pipe & Fittings

C&B Piping manufactures Threaded Welded Outlets onto ductile iron pipe & fittings. These are also known as a Thread-O-Let. They are commonly used on fittings for locations where direct tapping the fitting is not recommended.

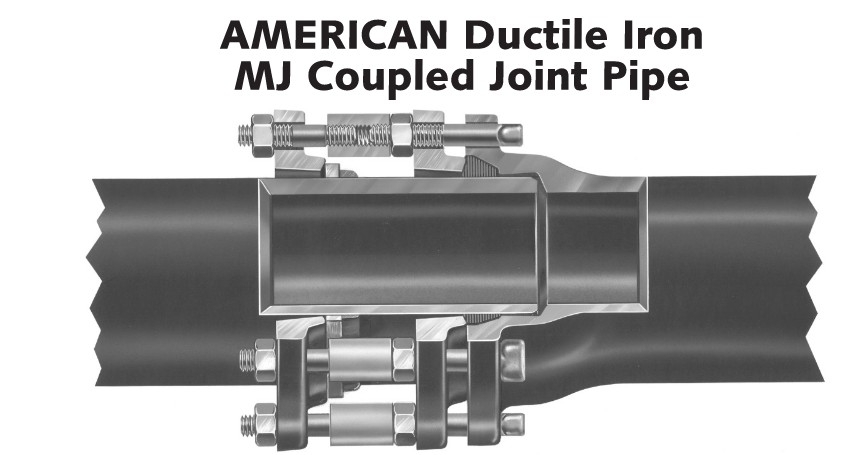

MJ Coupled Joint

The MJ Coupled joint is a restrained mechanical joint alternative to gripping style MJ restraints. It is offered in 3”-54” pipe sizes for ductile iron piping systems. The joint consists of a bar welded to the ductile iron pipe, one MJ gland, one special MJ gland, and special bolts/nuts to accommodate the installation of the thrust restraint. This joint is commonly used for connection to buried mechanical joint valves and/or fittings.

For more information, please contact C&B Piping, LLC

C&B Piping Grooved Fabricated DI Pipe

Grooved Joint ductile iron pipe spools are offered in sizes 3”-36” pipe diameter and lengths up to 20’ 0” long.

C&B Piping Flanged Weld On Bosses for Pipe & Fittings

C&B Piping provides Flanged Weld On Bosses outlets welded onto ductile iron pipe & fittings. The flanged outlets have threaded tapped bolt holes for direct installation of a spool for valve.

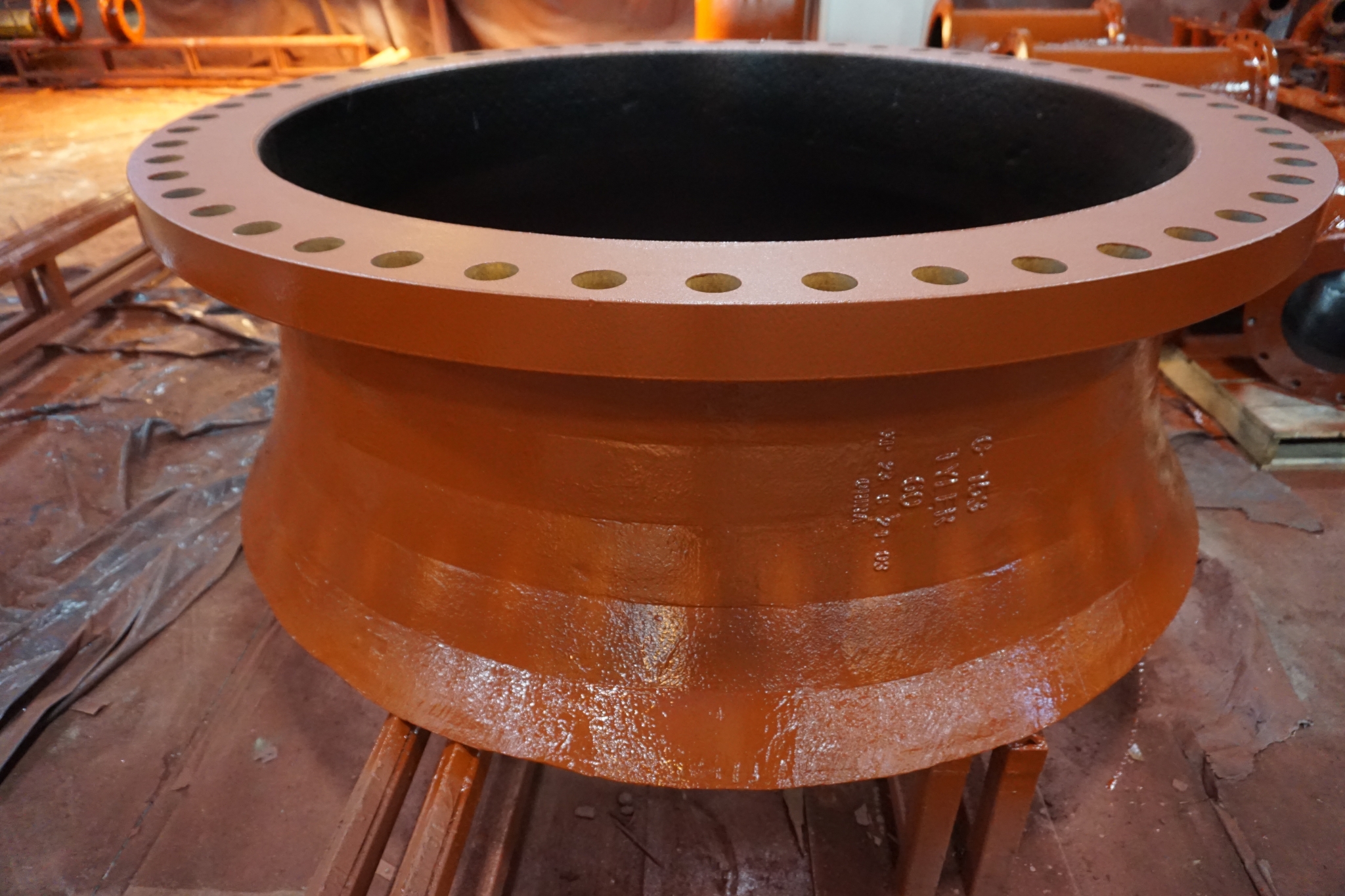

C&B Piping Flanged/Fabricated DI Pipe

Flanged Joint ductile iron pipe spools are offered in sizes 3”-64” pipe diameter and lengths up to 20’ 0” long.

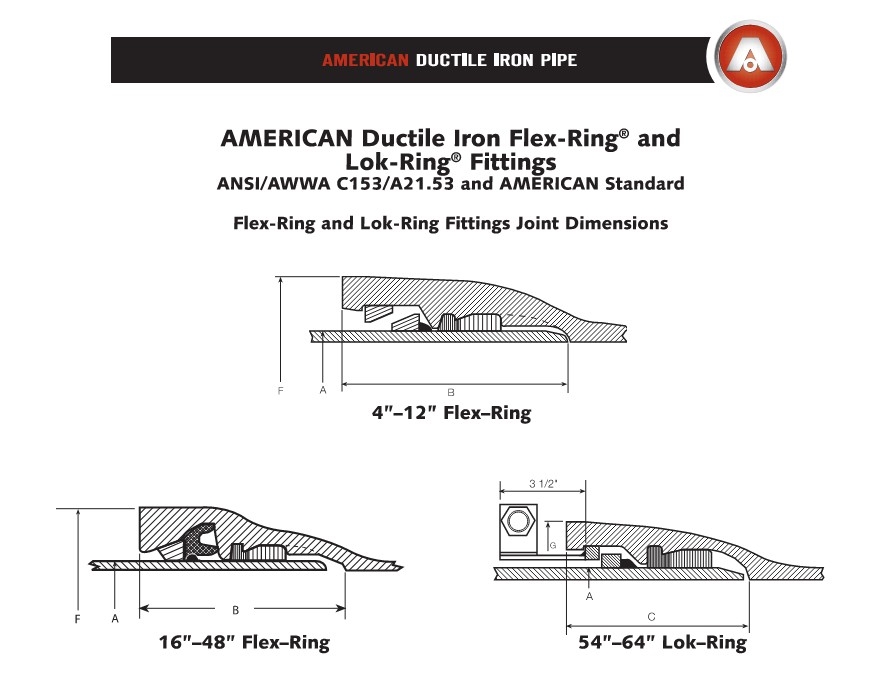

Flex-Ring® & Lok-Ring® Fittings

C&B offers Flex-Ring® and Lok-Ring® joint ductile iron fittings. They are available in sizes from 4” – 54” sizes. We stock them as cement lined, glass lined, and Protecto 401 lined. We also apply various exterior coatings for water & wastewater which fit the application intended.

For more information, please contact C&B Piping, LLC

Mechanical Joint Fittings

Mechanical Joint fittings are the industry standard for buried ductile iron piping systems. We stock MJ fittings in sizes 3” – 54” and both AWWA C153 and AWWA C110 specifications. We stock them as cement lined, glass lined, and Protecto 401 lined. We also apply various exterior coatings for water & wastewater which fit the application intended.

Victaulic Grooved Fittings

Victaulic Grooved joint ductile iron fittings are used primarily for above ground ductile iron piping systems. The Victaulic system saves time during installation and provides some field flexibility for some of the common challenges facing the mechanical contractor. We stock Victaulic Grooved fittings in sizes 3” – 36” conforming to the AWWA C606 standard. We stock them as cement lined, glass lined, and Protecto 401 lined. We also apply various exterior coatings for water & wastewater which fit the application intended.

DI Flanged Fittings

Flanged Joint ductile iron fittings are the industry standard for above ground ductile iron piping systems. We stock Flanged fittings in sizes 3” – 64” conforming to the AWWA C110 standard. We stock them as cement lined, glass lined, and Protecto 401 lined. We also apply various exterior coatings for water & wastewater which fit the application intended.

Tnemec L140F Pota-Pox Plus

C&B offers Tnemec L140F Pota-Pox Plus as a shop coat when required. L140F is a polyamidoamine epoxy and meets the NSF 61 drinking water requirements.

For more information, please contact C&B Piping, LLC

Tnemec Perma-Glaze Series G435

C&B offers Tnemec Perma-Glaze Series G435 modified polyamine epoxy for protection on the exterior of ductile iron pipe.



For more information, please contact C&B Piping, LLC

Induron Ceramawrap Epoxy Coating for ductile iron pipe

C&B offers Ceramawrap Epoxy Coating for exterior protection of ductile iron pipe and fittings in aggressive atmospheres and liquids.    Ceramawrap contains ceramic quartz pigment and amine cured epoxy.   It is ideal for aggressive sewage lift stations and saltwater protection for piping on bridges in ocean environments.

C&B Piping Field Repair Kit for CBGL911 Glass Lining

C&B Piping stocks and offers repair kits for CBGL911 Glass Lining. These kits are needed to repair field cut pipe and touch up for fittings and fabrications.

Induron Field Repair Kit for Protecto 401 Ceramic Epoxy

C&B Piping stocks and offers repair kits for Protecto 401 Ceramic Epoxy. These kits are needed to repair field cut pipe and touch up for fittings and fabrications.

Induron Ceramapure PL90 Epoxy Lining for NSF-61 Water

C&B Piping is a licensed applicator of Ceramapure PL90 Epoxy Lining for ductile iron pipe, fittings, and fabrications. Ceramapure PL90 is used primarily for water lining applications where cement lining is not desired. Ceramapure PL90 is NSF-61 approved.   Ceramapure PL90 can also be used in wastewater applications. Ceramapure PL90 is also used as an superior alternative to Fusion Bonded Epoxy coatings on ductile iron pipe or fittings.  Ceramapure™ PL90 meets or exceeds the compliance standards for AWWA C-210.

Induron Protecto 401 Ceramic Epoxy Lining

C&B Piping is a licensed applicator of Protecto 401 Ceramic Epoxy Lining for ductile iron pipe, fittings, and fabrications. Protecto 401 is the industry standard for protection of ductile iron piping sewer lines where corrosion protection is needed. Since 1981, literally thousands of miles of ductile iron sewer pipe have been lined with Protecto 401.

C&B Piping CBGL911 Porcelain Glass Lining

C&B Piping manufactures CBGL911 Porcelain Glass Lining for ductile iron piping systems. Glass lining is typically used to prevent clogging build up or wear for sewage service lines which contain solids content. Glass lining provides a superior non stick surface.

FULL FACE FLANGE-TYTE® GASKET

C&B stocks the FULL FACE FLANGE-TYTE® GASKET. This product is a high performing gasket recommended for ductile iron threaded flanged pipe. It is also NSF-61 approved. It is available in sizes 4”-64” pipe diameter.

VICTAULIC®

C&B is a STOCKING distributor of VICTAULIC® products. VICTAULIC® manufactures grooved fittings, couplings, flanged adapters, bolted split sleeve Depend O Lok couplings, and more. C&B stocks the largest inventory in the USA of Victaulic AWWA products.

Contact C&B for your VICTAULIC® products
