Products

C&B Piping Flanged/Fabricated DI Pipe

Flanged Joint ductile iron pipe spools are offered in sizes 3”-64” pipe diameter and lengths up to 20’ 0” long.

C&B Piping Grooved Fabricated DI Pipe

Grooved Joint ductile iron pipe spools are offered in sizes 3”-36” pipe diameter and lengths up to 20’ 0” long.

C&B Piping DI Wall Penetration Pipe

For DI piping passing through walls, DI Wall Pipe may be used.   All DI Wall Pipe manufactured by C&B Piping are furnished with a wall collar welded continuously on both sides of the collar. This wall collar serves both as a waterstop and a thrust collar.

MJ Coupled Joint

The MJ Coupled joint is a restrained mechanical joint alternative to gripping style MJ restraints. It is offered in 3”-54” pipe sizes for ductile iron piping systems. The joint consists of a bar welded to the ductile iron pipe, one MJ gland, one special MJ gland, and special bolts/nuts to accommodate the installation of the thrust restraint. This joint is commonly used for connection to buried mechanical joint valves and/or fittings.

For more information, please contact C&B Piping, LLC

C&B Piping DI Fabricated Restrained Joint Closure Spools

C&B Piping utilizes automated welding machines which use the submerged-arc welding process to apply OEM designed factory restrained joint weld beads onto ductile iron pipe.

C&B Piping Fabricated Victaulic Bolted Sleeve Coupling Closures

C&B Piping provides closure spool pipe connections to be used with restrained bolted sleeve couplings (Depend-O-Lok) manufactured by Victaulic.

C&B Piping Threaded Welded Outlets for Pipe & Fittings

C&B Piping manufactures Threaded Welded Outlets onto ductile iron pipe & fittings. These are also known as a Thread-O-Let. They are commonly used on fittings for locations where direct tapping the fitting is not recommended.

C&B Piping Flanged Weld On Bosses for Pipe & Fittings

C&B Piping provides Flanged Weld On Bosses outlets welded onto ductile iron pipe & fittings. The flanged outlets have threaded tapped bolt holes for direct installation of a spool for valve.

Fastite® Ductile Iron Pipe

C&B provides Fastite® ductile iron pipe for buried non restrained piping applications.   We also apply various linings for water & wastewater which fit the application intended.

For more information, please contact C&B Piping, LLC

Lok-Ring® Joint Ductile Iron Pipe

C&B can provide Lok-Ring® Joint Ductile Iron Pipe for buried restrained piping applications. Lok-Ring® Joint Ductile Iron Pipe is available in 64" size.  We also apply various linings for water & wastewater which fit the application intended.

For more information, please contact C&B Piping, LLC

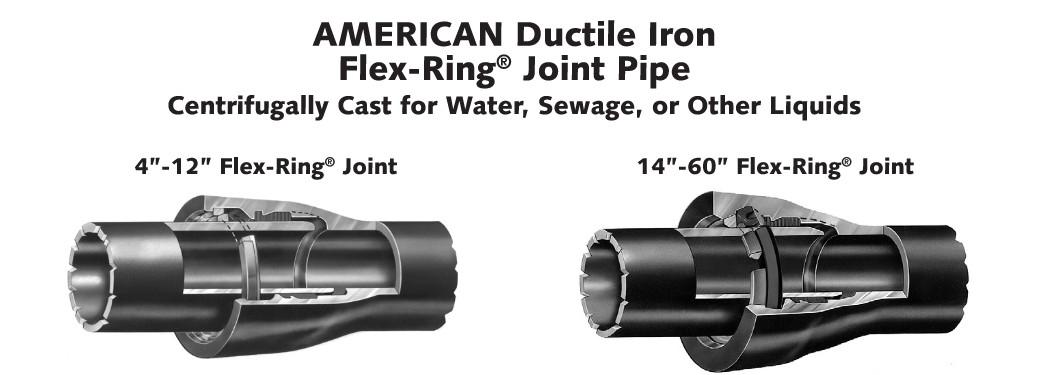

Flex-Ring® Joint Ductile Iron Pipe

C&B can provide Flex-Ring® Joint Ductile Iron Pipe for buried restrained piping applications. Flex-Ring® is available in sizes 4”-60” diameter. We also apply various linings for water & wastewater which fit the application intended.

For more information, please contact C&B Piping, LLC
